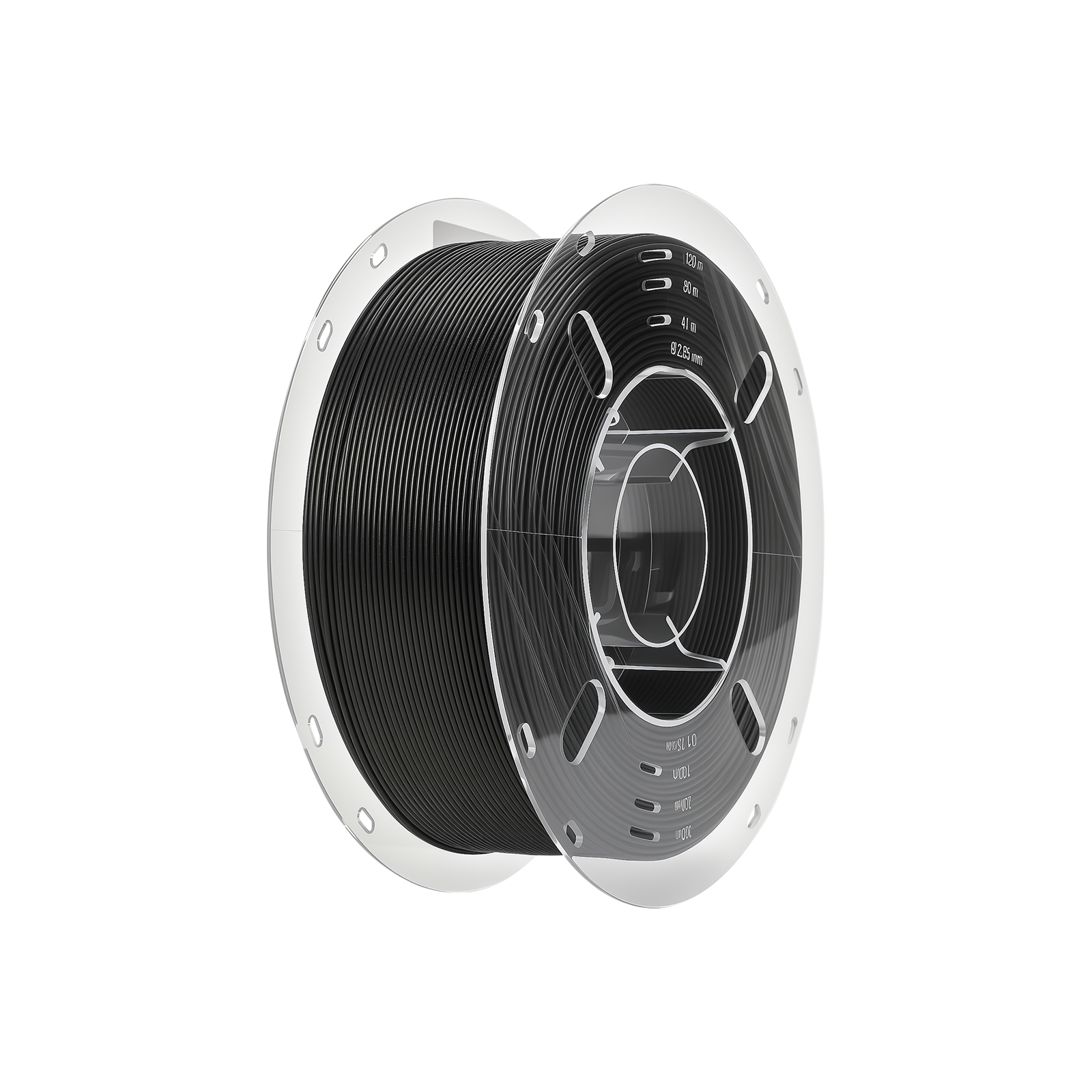

PET-CF
Specification
Drying Conditions before Printing:
100°C, 5h (Convection Oven)
Nozzle Diameter:
φ0.4/0.6mm (φ0.4mm recommended)
Layer Thickness:
0.12~0.3mm
Nozzle Temperature:
260-290°C
Build Plate Temperature:
70~100°C
Printing Speed:
40~150mm/s (higher speeds require higher temperatures)
Cooling Fan:
0~20%
Retraction Length:
4~6mm
Retraction Speed:
20~40mm/s
Support Materials:
Self-supporting, HIPS
Filament Diameter:
1.75mm
Printing and Storage Humidity:
Room temperature to 40°C, ≤20% RH (Sealed with desiccant)
Not picky, broadly compatible.
FFF devices on the market with a filament diameter of 1.75mm can all be used, but high-speed FFF 3D printers perform better.
