FlashForge AD5M Shines Amidst Power Outages, Saving a Farm from Significant Losses

8 Key Factors to Consider When Buying Your First 3D Printer Reading FlashForge AD5M Shines Amidst Power Outages, Saving a Farm from Significant Losses 5 minutes Next Halloween 3D print - Top popular models in 2024

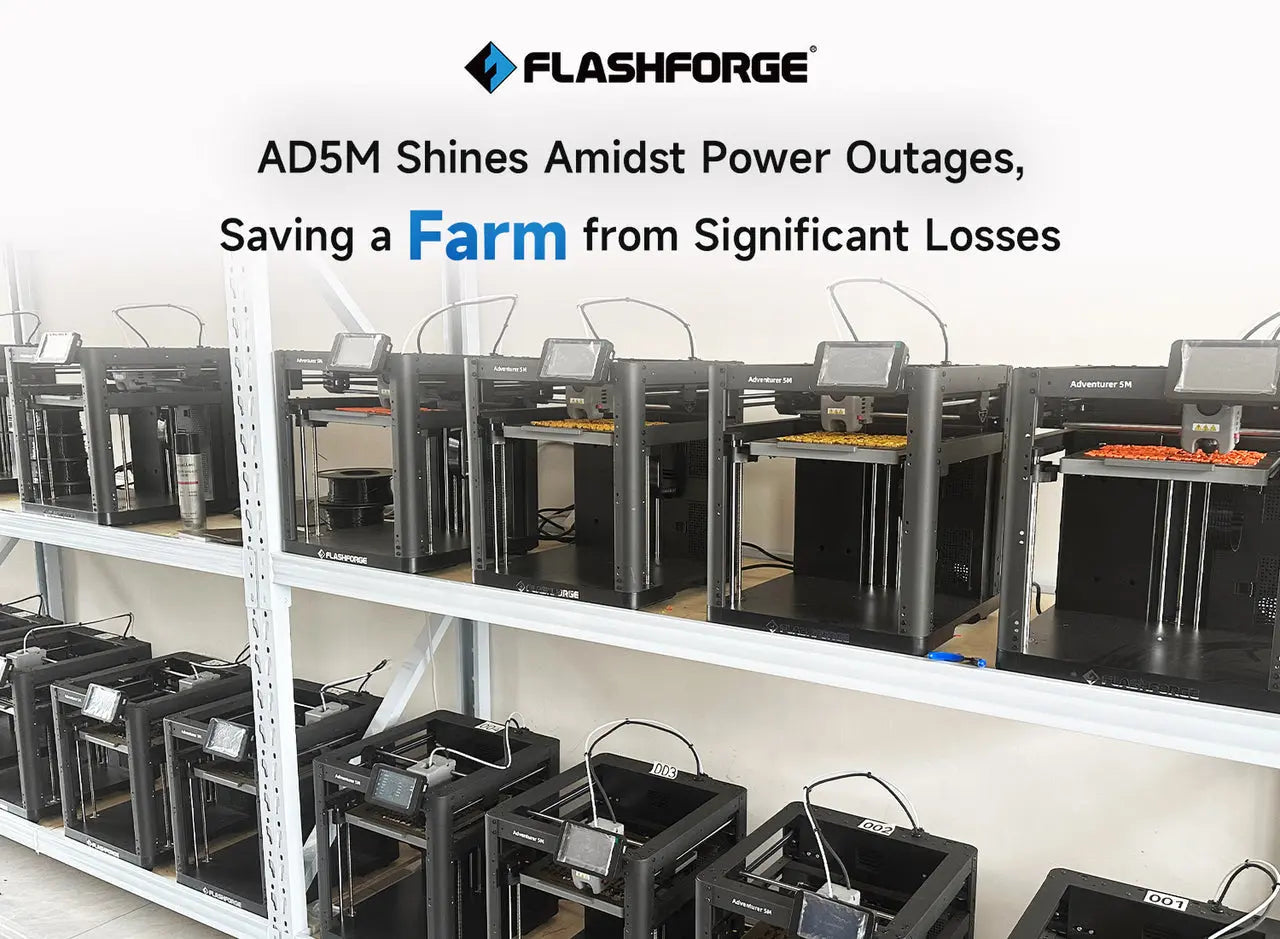

A leading farm owner in China recently experienced two major power outages, impacting over 2,500 3D printers across multiple brands.
Among these, the FlashForge AD5M stood out as the machine with the highest resume-printing success rate, saving the farm owner from substantial financial losses.
"We use three different brands, but the FlashForge AD5M is the only one that consistently resumes printing after several power outages," said the farm owner.
Power outage print failure

Why Flashforge AD5M Supports Effective Power Loss Recovery?

The Flashforge Adventurer 5M is distinguished by its capability for effective power loss recovery, attributed to its robust hardware design, stable Core XY structure, and sophisticated firmware algorithms.
  • Stability in Hardware Design: The Adventurer 5M integrates high-precision sensors and controllers that meticulously record the printing state (including position, layer height, and printing parameters) at the moment of power loss. Upon restoration of power, the printer can swiftly and accurately resume printing. The hardware system undergoes rigorous calibration and optimization to ensure that any potential displacement of the print head and platform is minimized following a power interruption.
  • Core XY Motion Structure: The enhanced stability of the Core XY structure, in conjunction with vibration compensation algorithms, facilitates independent control of the X and Y axes. This symmetrical design significantly mitigates mechanical displacement errors during power outages. Furthermore, the overall robustness of the structure reduces external vibrations and offsets, which is crucial for preserving print accuracy during recovery.
  • Powerful Firmware Algorithms: The firmware has been subjected to extensive testing and optimization, with over 170 tests conducted specifically to refine seam line issues. It possesses the capability to rapidly document real-time print states at the moment of power loss and intelligently calculate a seamless resumption of printing. This optimization not only diminishes errors during recovery but also ensures the proper coordination of various parameters (such as heated bed and nozzle temperatures) throughout the printing process. Consequently, in the event of a power outage, the Adventurer 5M excels in maintaining precision during power recovery.

Why Other Structures Struggle with Effective Power Recovery?

3D printers employing Delta, Gantry, and Cantilever structures encounter significant technical challenges in achieving true power recovery due to their mechanical design and operational principles.
  • Delta Structure: In Delta printers, the print head is maneuvered via three independent arms. Any minor movement of a single motor during a power outage can adversely affect the overall position of the print head. The intricate dynamics of arm movements complicate the accurate determination of the print head's precise position prior to power loss. Moreover, Delta print heads are lightweight and exhibit low inertia, rendering them susceptible to gravitational or external influences that may cause them to drift, particularly along the Z-axis. Such movement results in discrepancies between the recorded position and the actual location, thereby complicating layer alignment during recovery.
  • Gantry Structure: In Gantry systems, the X and Y axes frequently feature heavy sliding components or platforms. Upon power loss, the absence of motor assistance can enable these substantial parts to slide along the guide rails due to inertia, resulting in positional shifts of either the print head or platform. The initial phase following a power interruption may witness rapid movements of the print head due to the lack of frictional resistance, culminating in position displacements.
  • Cantilever Structure: The Cantilever design inherently suspends one side of the assembly, leading to significant torque exerted by gravity on the cantilevered portion during power loss. This condition can result in a shift in the position of the print head or platform, particularly along the Z-axis, thus complicating the achievement of precise alignment with the pre-power loss position.

In Conclusion

The FlashForge AD5M stands out due to its Core XY structure and FlashForge's 12 years of experience in 3D printing.
If you're seeking a reliable, stable, and cost-effective 3D printer for your farm, the FlashForge AD5M is an excellent choice. It can save you time, reduce overall farm costs, and deliver industrial-grade print quality.
Print Farm Bulk Purchase Savings - Limited Time Offer!
Currently, we are launching a limited time special print farm bulk purchase, for our print farm best picks, AD5M and AD5M Pro. No matter if you need 5 units, 10 units, or 30 units, we have the right package for you. Limited to the first 500 units worldwide.*
Feel free to email us if you have any questions! Print Farm KA Manager: Emily.xiong@flashforge.com
