More Options, Greater Space, Enhanced Efficiency

Elevate Professional-Grade 3D Printing Experience

Core-XY Structure
Enhances Printing Precision

The Core-XY structure, with its metal components, provides high rigidity to reduce errors from vibrations or mechanical shifts. Its independently controlled X and Y axes also minimize the looseness and inaccuracies common in traditional belt-driven systems, ensuring greater precision and stability in printing.

Large Size,
Expanding Printing
Boundaries

Accommodates a variety of model sizes with a maximum print height of 600mm, meeting all your large-scale printing needs.

Achieve More In Less Time With Our High-Speed Printers

Excellent Surface Quality

The extruder pressure compensation algorithm realizes accurate control of the amount of filament that is extruded in advance, resulting in smooth printing and flawless first layer.

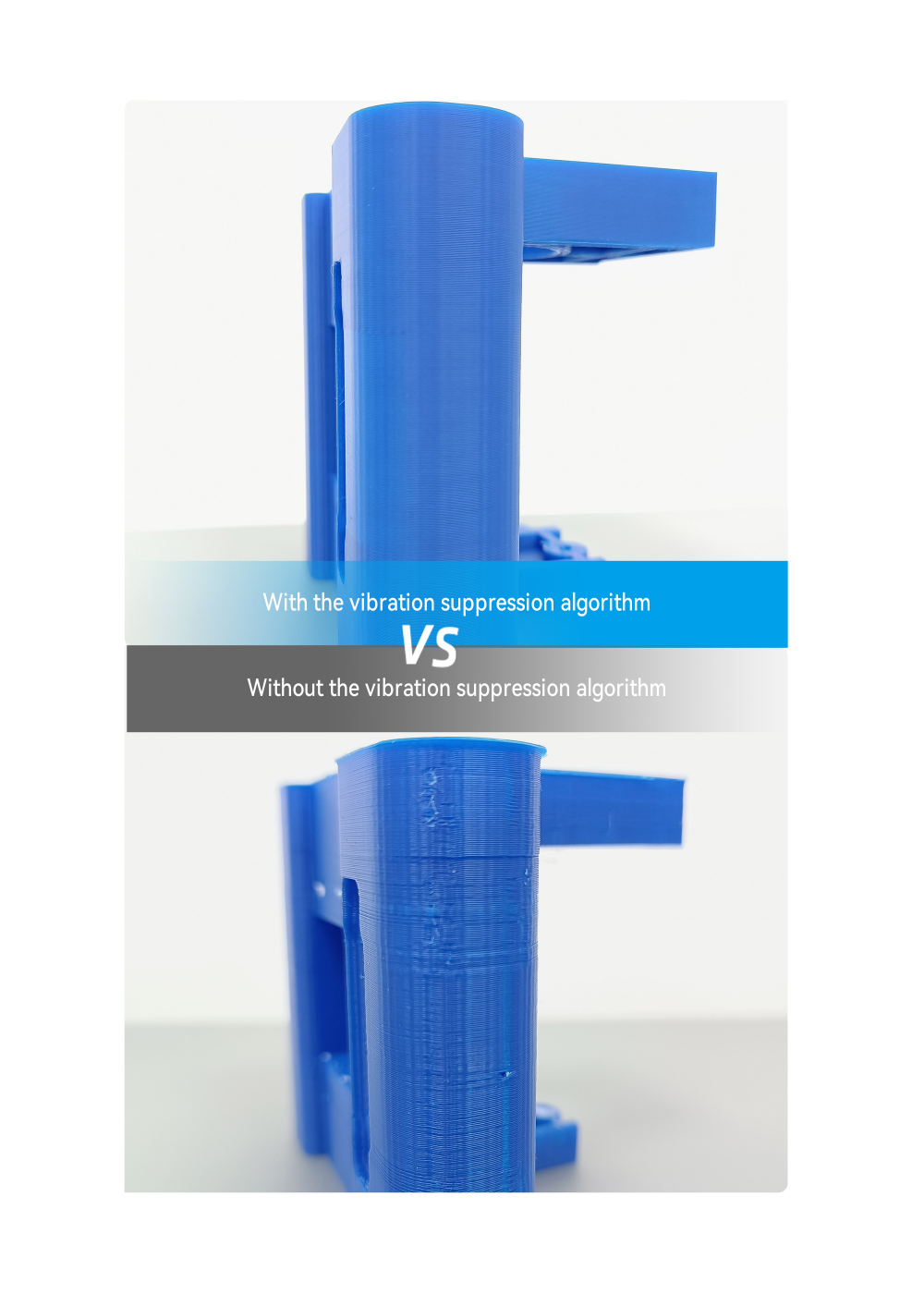

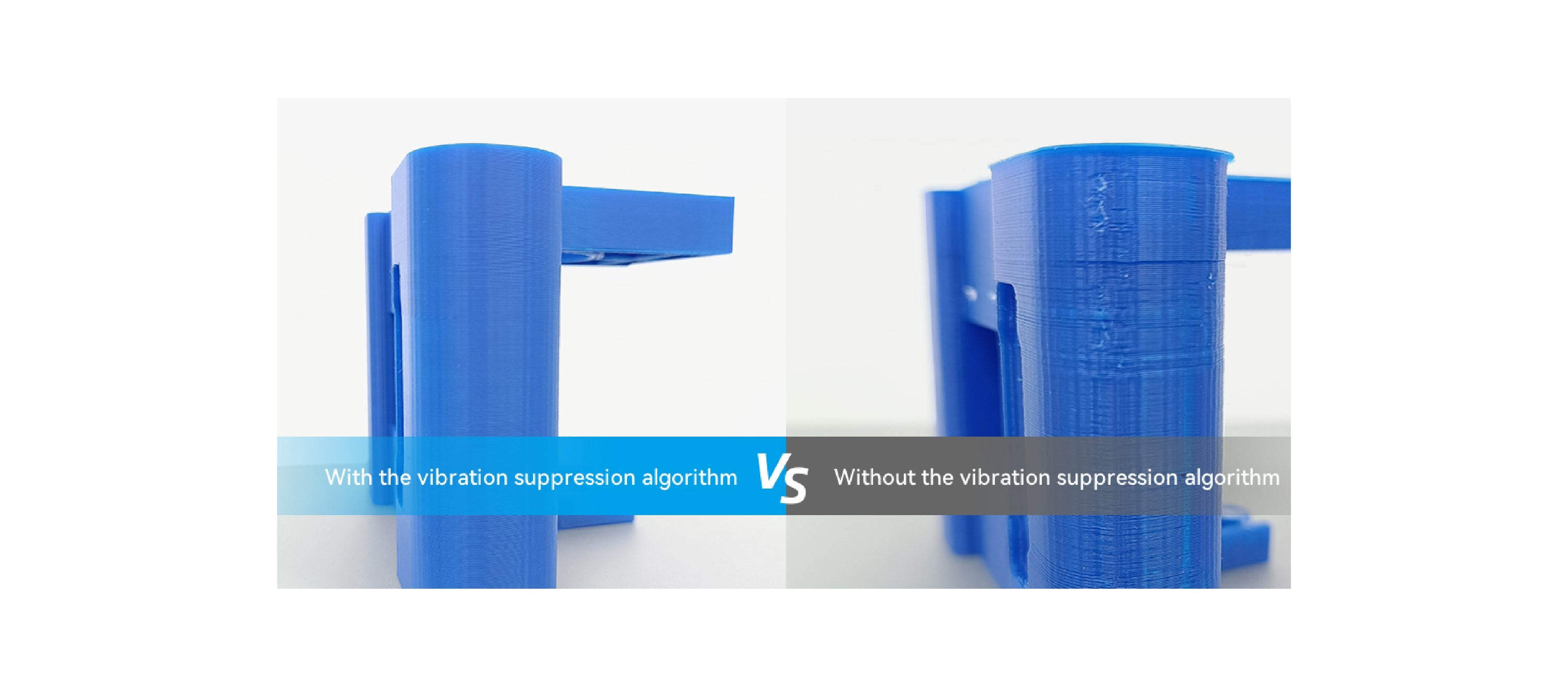

The exclusive vibration suppression algorithm automatically compensates the vibrations during high-speed printing, thus eliminating ringing.

Full Auto-Leveling, Rone-Click Printing

Enjoy perfect prints every time with effortless, fully automatic bed leveling. No more manual adjustments needed!

Tool-Free, Quick-Release Nozzle

Save maintenance time without affecting the whole printing process.

Seamless Filament Switch

When the filament runs out during printing,the filament sensor triggers an automatic switch to the other extruder.
This ensures continuous printing without interruptions or the need for manual intervention.

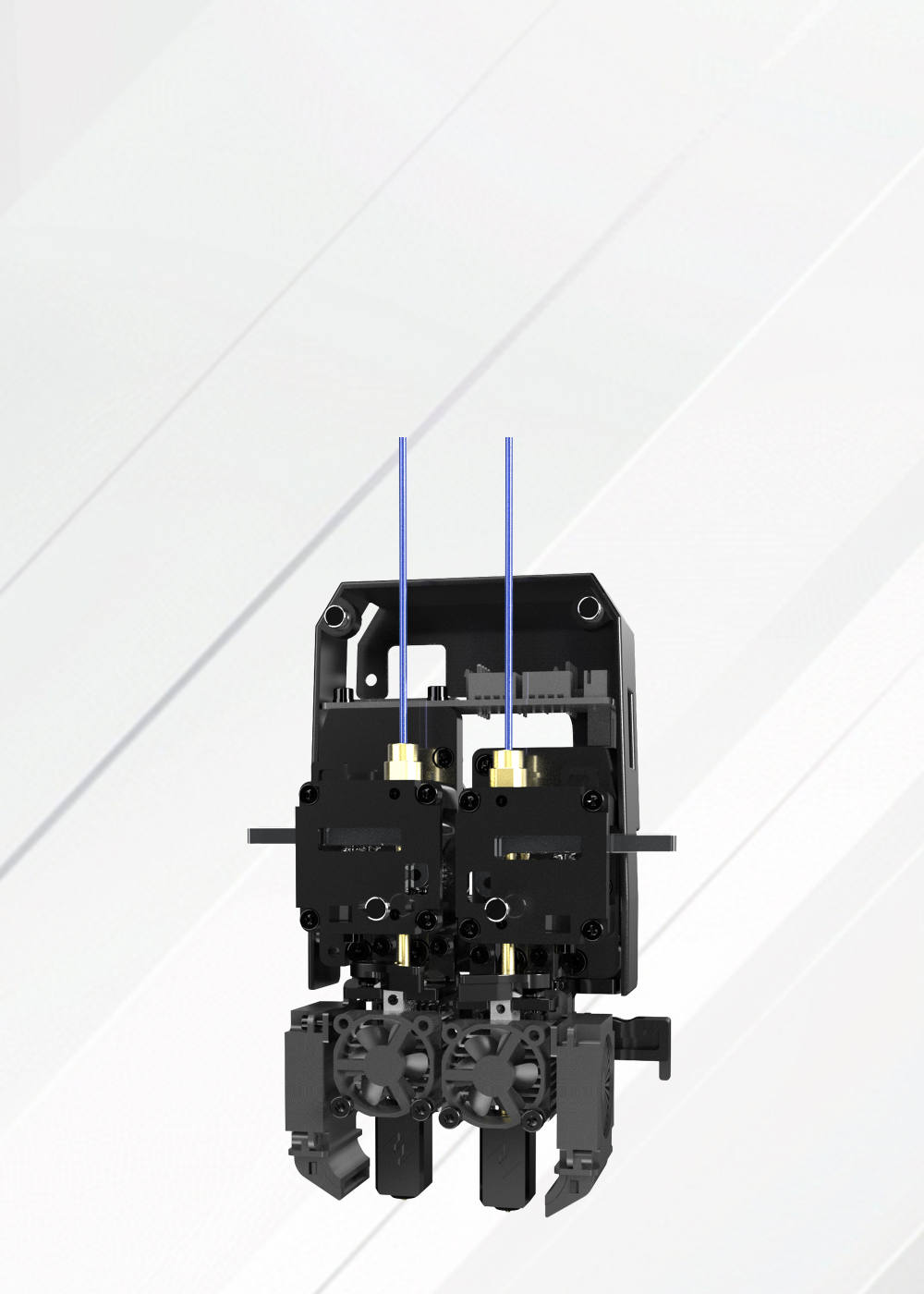

Dual Extruder Design for Building Complex Models

Support printing easy-to-remove and soluble support materials;
Suitable for printing complex models with overhangs, bridges and hollow structures

Why Time Saved?

The support uses the same material as the model, reducing extruder switches and waiting time, cutting model print time by about 70%

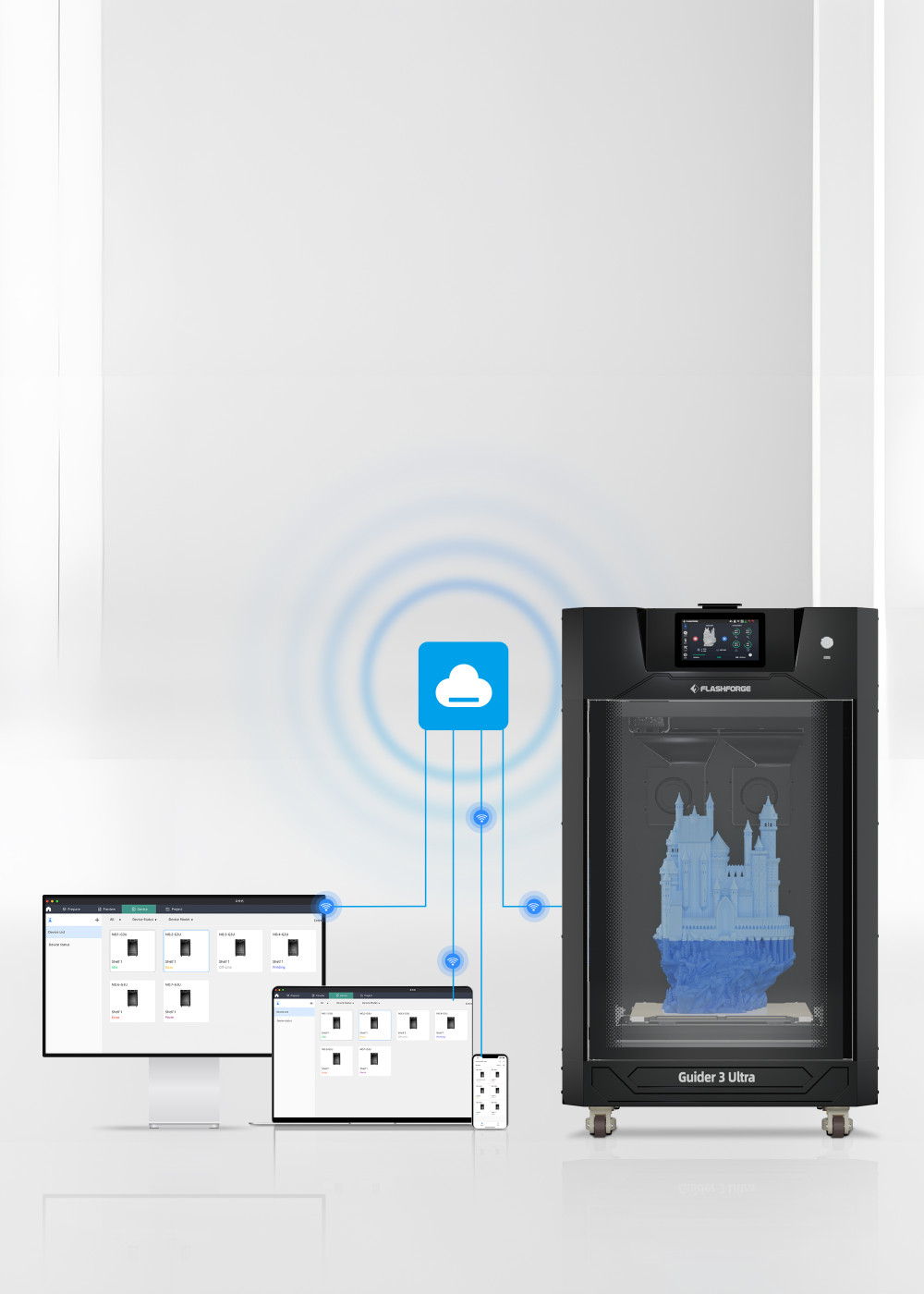

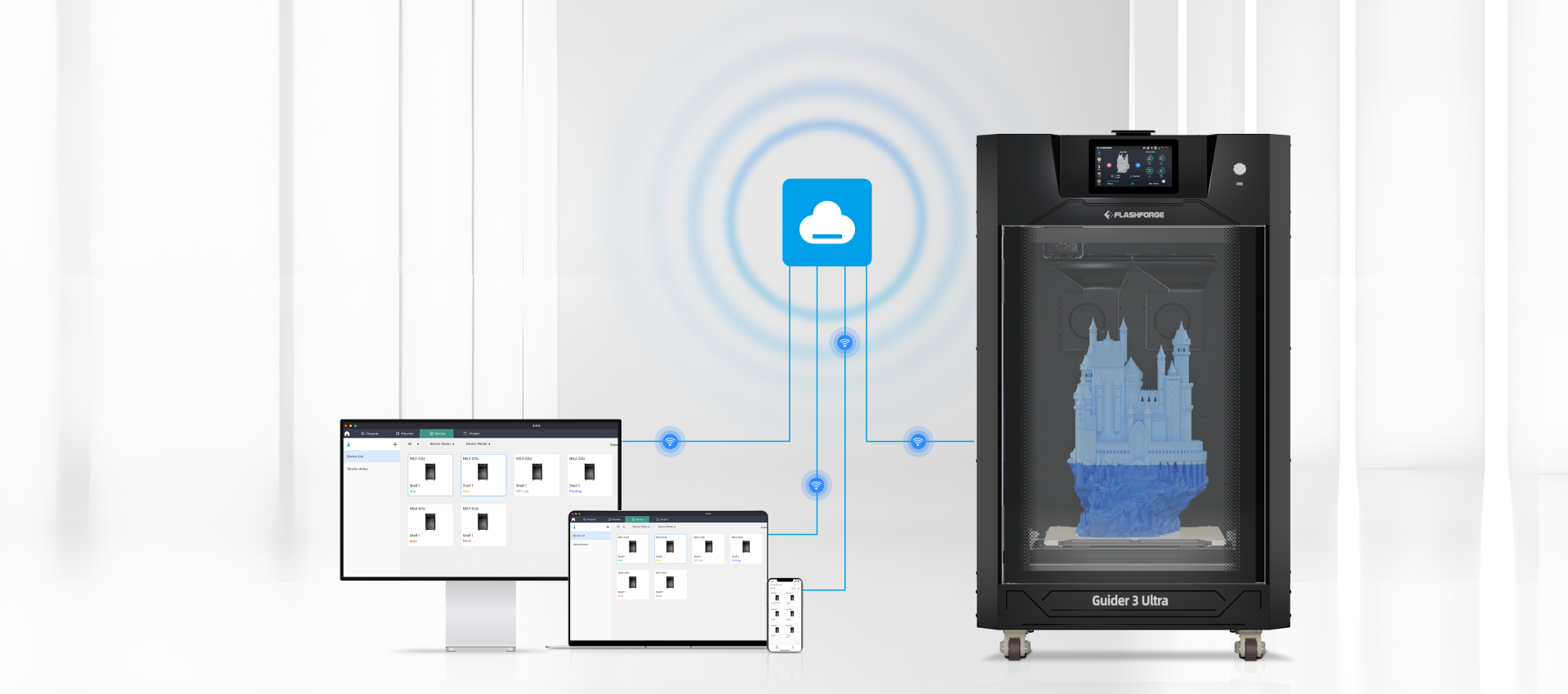

Simplify Printer Management

Cluster Management:location-based group control; remote printing; repeated jobs can be directly processed via the history.
Stay desk-bound, with printers in control anytime.

What's More

Auto Shutdown,Once Print Done
Safely print your models at night and pick them up during the day.
Power Loss Recovery
Avoid failed prints due to accidental power outages and guarantee normal printing
Filament Run-out Reminder
Automatically detect filament shortage and pause printing. Printing can be resumed after filament fed.
HEPA 13 Air Filtration System
Filter particles and odors for a safe, eco-friendly workspace
Specification
Machine Name
Guider 3 Ultra
Extruder Quantity
2
Printing precision
±0.15 mm or ±0.002mm/mm (The larger values shall prevail)
Position precision
X/Y-axis: 0.011 mm; Z-axis: 0.0025 mm
Layer thickness
0.05~0.4 mm
Build size
Single extruder: 330x330x600mm; Dual extruders: 300x330x600mm
Nozzle diameter
0.4mm(Default); 0.6/0.8mm(Optional)
Printing speed
10-500mm/s
Max Acceleration
20000mm/s²
Max travel speed
500mm/s
Max extruder temperature
350℃
Filament type
PLA / ABS / HIPS / ASA / PETG / CoPA / PLA-CF / PETG-CF / PAHT-CF / PAHT-GF / PET-CF / PET-GF / PA12-CF / PA-CF / PA-GF / NexPA-CF25
Power supply
AC100-240V, 50/60Hz, 850W MAX
Device size
635 x 550 x 1070 mm (Excluding the protruding width of the filament box)
Packaging size
775(L)*690(W)*1235(H)mm
Gross weight
86kg
Net weight
70kg
Slicing software
Orca-Flashforge / FlashPrint 5
Input/Output file type
Input: 3MF/ STL/ OBJ/ FPP/ BMP/ PNG/ JPG/ JPEG; Output: GX/ G/ Gcode
Printing connection
USB/ Ethernet/ Wi-Fi
Certification
CE / FCC / RoHS
Working temperature
15-30℃
Compatible operating system
Windows 7/8/10/11; Mac OS: support version 10.9 or later
Compatible slicing software
OrcaSlicer
Heating bed setting support
120
Close design
Auxiliary leveling
Full-auto one-click leveling
Filament running out reminding
Replaceable print bed
Continue last printing when power off
Intelligent door sensor
×
Touch LCD screen
7 Inch
Remote camera watching
Time-lapse video
Wireless WIFI
Ethernet
USB stick Interface
Air filter net
Magnetic Printing bed
Flexible Steel Plate Platform
Glass printing bed
×
Cloud
Noise
Silent Design
Automatic shutdown
